Name: Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SP-100K
Price: 14,000.00 USD
Availability: InStock

Hogar > Productos > Máquina de la soldadura por puntos >

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Thermal Overload Protection Spot Welding Machine

Voltage Reduction Device AC Welding Machine

Intelligent Touch Screen Controller Industrial Welder

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

CE/CCC/ISO

Número de modelo:

WL-SP-100K

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Hwashi máquina de soldadura de CA soldadura puntual para aluminio, cobre, latón, acero inoxidable so

Solicitud:

soldadura del acero de aluminio de cobre

Tamaño:

Las demás partidas de la caja:

Peso:

450 kilos

Condición:

Nuevo

Garantía:

12 meses

Certificado:

CE/CCC/ISO

Vida útil:

8-10 años

Pago y términos de envío

Cantidad de orden mínima

1 juego

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar

Tiempo de entrega

7-30 días hábiles después de recibir su pago

Condiciones de pago

LC, T/T

Capacidad de la fuente

50 juegos por mes

Productos relacionados

Vídeo

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Consiga el mejor precio

Vídeo

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified

Consiga el mejor precio

Vídeo

HWASHI WL-MF-250K Máquina de soldadura de punto de inversor de frecuencia media de tipo vertical con tecnología de 1000Hz para soldadura de chapa de metal consistente

Consiga el mejor precio

Vídeo

HWASHI WL-MF-250K Máquina de soldadura de punto de inversor de frecuencia media de tipo vertical con tecnología de 1000Hz para soldadura de chapa de metal consistente

Consiga el mejor precio

Éntrenos en contacto con

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contacto ahora

Descripción de producto

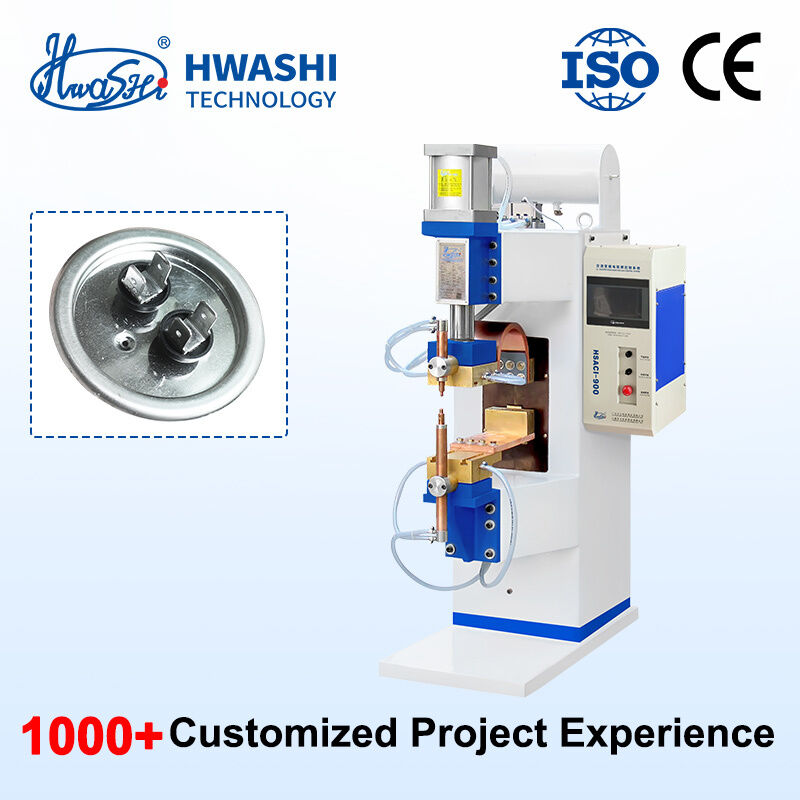

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

The Hwashi AC Welding Machine is a versatile and advanced spot welding device designed for precise and efficient welding applications across various industries. Featuring high-frequency AC output for superior weld quality, this machine offers adjustable current and time controls for optimal welding parameters.

Advanced Features & Technology

Intelligent Welding Control System

Touch screen controller for easy input and reading of welding parameters with programmable settings for customization and repeatability.

Premium Materials Construction

Thicker copper plates and belts ensure stable conductivity and consistent welding performance with efficient cooling system.

Customizable Electrodes

Specialized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel.

Adaptive Structure Design

Custom machine shapes and molds designed according to specific welding product requirements and applications.

Safety & Protection Features

Thermal Overload Protection: Prevents overheating and ensures safe operation during extended use
Voltage Reduction Device (VRD): Reduces open-circuit voltage when not in use, minimizing electric shock risk

These efficient AC welding features combine advanced technologies with user-friendly controls to enhance weld quality, productivity, and safety. The adaptive arc control and durable construction make this machine ideal for high-volume production, delivering reliable and high-quality welds across various materials.

Technical Specifications

Model	Input Voltage	Input Power	Output Current	Pressurization	Electrode Stroke	Platform Distance	Electrode Distance
WL-S-3K	220V	10KVA	5000A	200kg	50mm	65-115mm	145-165mm
WL-S-5K	220V	10KVA	6000A	200kg	50mm	65-115mm	145-165mm
WL-S-10K	220V	10KVA	8000A	200kg	50mm	65-115mm	145-165mm
WL-S-16K	380V	16KVA	10000A	300kg	80mm	-	-
WL-S-25K	-	25KVA	12000A	300kg	80mm	-	-
WL-S-35K	-	35KVA	16000A	350kg	80mm	-	-
WL-S-50K	-	50KVA	19500A	500kg	80mm	-	-
WL-SP-25K	-	25KVA	12000A	300kg	80mm	145-225mm	320-420mm
WL-SP-35K	-	50KVA	16000A	350kg	80mm	145-225mm	320-420mm
WL-SP-50K	-	50KVA	19500A	500kg	80mm	145-225mm	320-420mm
WL-SP-75K	-	75KVA	24000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-100K	-	100KVA	34000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-150K	-	150KVA	40000A	1000kg	100mm	130-230mm	490-540mm
WL-SP-200K	-	200KVA	50000A	1500kg	100mm	130-230mm	490-540mm
WL-P-75K	-	75KVA	24000A	1000kg	100mm	130-230mm	-
WL-P-100K	-	100KVA	34000A	1000kg	100mm	130-230mm	-
WL-P-150K	-	150KVA	40000A	1000kg	100mm	130-230mm	-
WL-P-200K	380V	200KVA	50000A	1500kg	100mm	130-230mm	-
WL-P-300K	380V	300KVA	75000A	2000kg	100mm	130-230mm	-

Applications & Industries

Suitable for spot welding and projection welding of steel plate, stainless steel sheet, wire products, hardware decorative lighting, kitchen utensils, automotive industry, small household appliances, and various hardware applications.

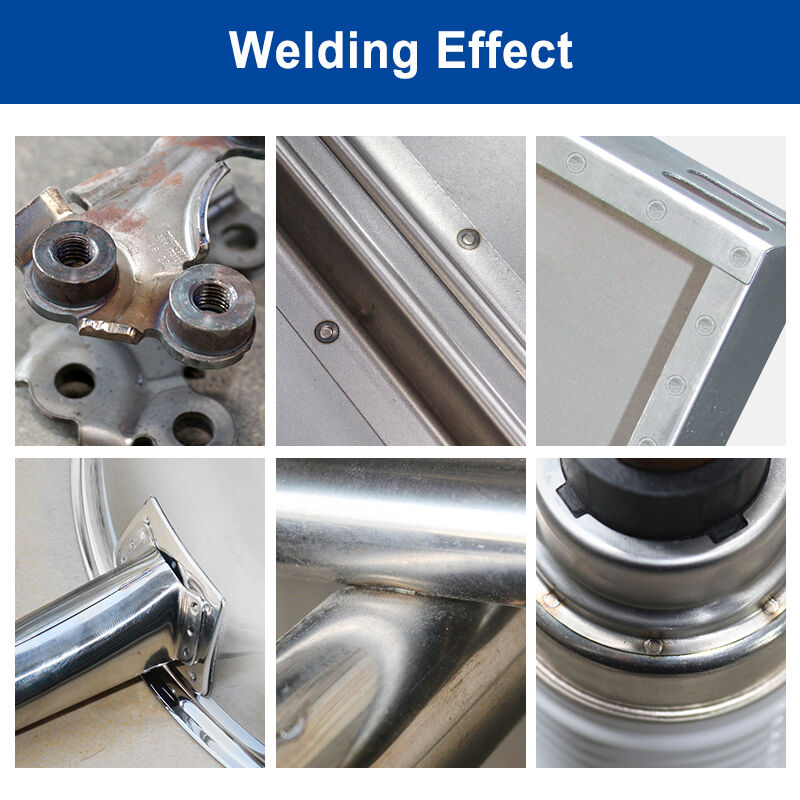

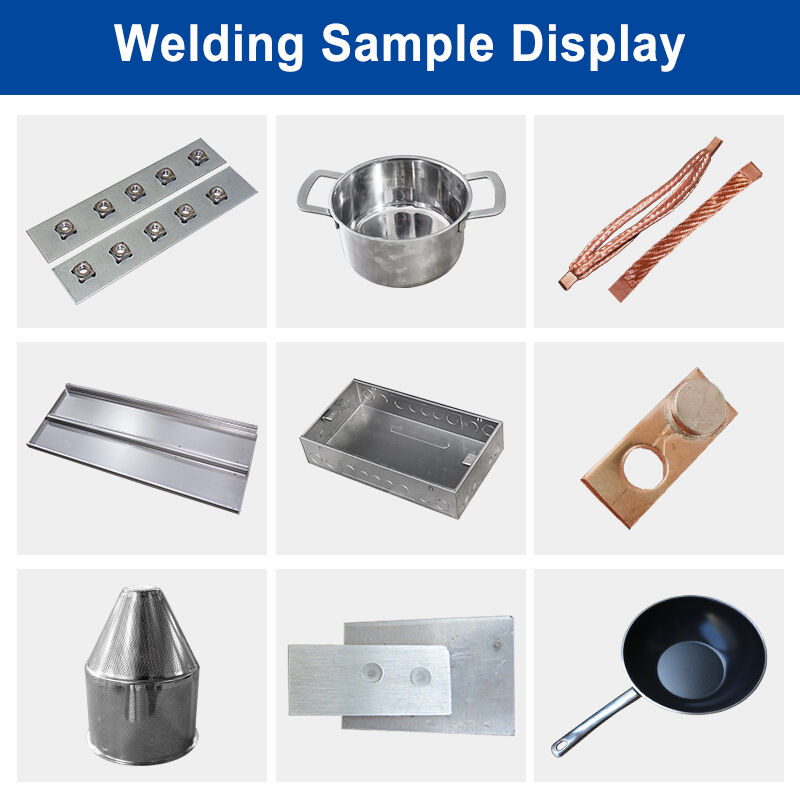

Application Samples
