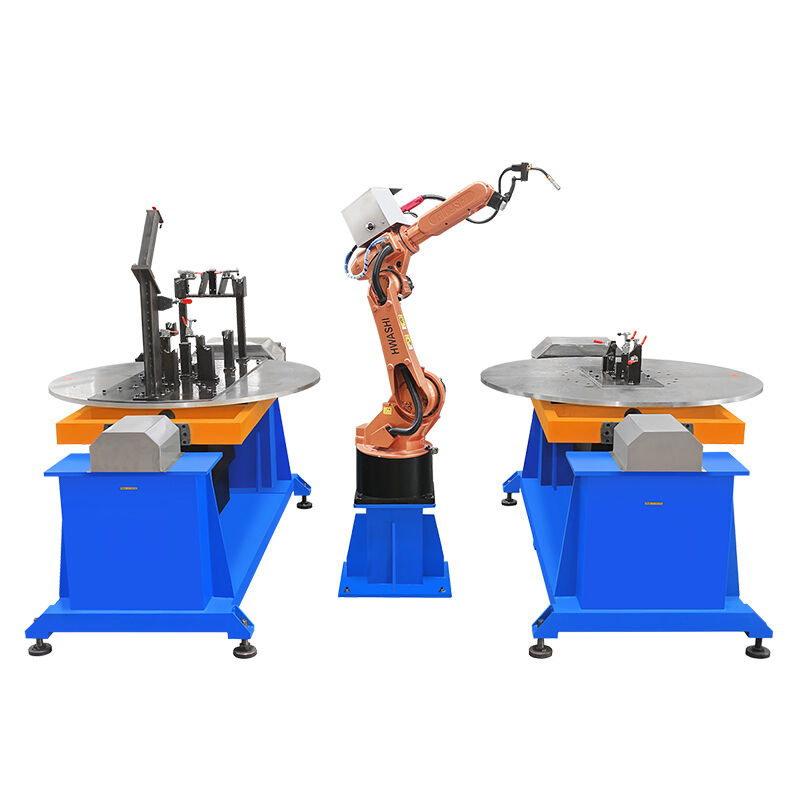

Name: Hwashi 6-Axis Robotic MIG Welding Machine with 380V Power and 165KG Payload for Industrial Automation
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: HS-R8-06
Price: 15,000.00 USD
Availability: InStock

Hogar > Productos > robots de soldadura industriales >

Hwashi 6-Axis Robotic MIG Welding Machine with 380V Power and 165KG Payload for Industrial Automation

6-axis robotic MIG welding machine

380V industrial welding robot

165KG payload welding robot

Lugar de origen:

Porcelana

Nombre de la marca:

Hwashi

Certificación:

CCC,CE,ISO

Número de modelo:

HS-R8-06

Éntrenos en contacto con

Pida una cita

Detalles del producto

Capacidad de producción:

Según producto

Nombre:

Robot de soldadura

Potencia(w):

Voltaje:

380V

peso (kg):

600

El servicio de la vida:

10 años

Pago y términos de envío

Cantidad de orden mínima

1/juego

Precio

$10000-20000

Detalles de empaquetado

Paquete de madera del seaworth

Tiempo de entrega

30 días laborables

Condiciones de pago

LC, T/T, Unión Occidental

Productos relacionados

Vídeo

Pistola de soldadura automática anti-colisión para silla de acero inoxidable estable

Consiga el mejor precio

Vídeo

Máquina de soldadura MIG robótica de 6 ejes Hwashi para automatización de sillas y muebles

Consiga el mejor precio

Vídeo

Máquina de soldadura industrial Hwashi CNC robótica de 6 ejes con servo, soporte de posicionador de brazo de robot de soldadura, robot de soldadura automático TIG

Consiga el mejor precio

Vídeo

Los robots de soldadura industriales de Hwashi MIG emiten el robot de soldadura para el marco del estante del almacenamiento

Consiga el mejor precio

Éntrenos en contacto con

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contacto ahora

Descripción de producto

Hwashi 6-Axis Robotic MIG Welding Machine for Chair & Furniture Automation

Hwashi High Quality Robotic Arm 6 Axis Industrial Robot Manufacturer Widely Used In The Automotive Industry

Product Description

HWASHI six-axis welding industrial robot can be combined with MIG welding machine, TIG welding machine, Spot welding, Aluminium welding machine and laser welding machine.

Use robot to replace labor force for welding. Manual loading and unloading of product. One time fixing of the product onto the fixture.
Workpiece material: stainless steel tube, wall thickness: 1.2mm; Size: 350 x 350 x 800mm
The workpiece should be welded alternately on both sides and request to reduce the deformation. The flatness of the workpiece should be +/-1mm.

Technical Parameters

Model	HS-R6-08	HS-R6-10	HS-R6-20	HS-R6-50	HS-R6-165
DOF	6
Driving Mode	AC Servo Driving
Effective Load	8KG	10KG	20KG	50KG	165KG
Repeat Accuracy	±0.05mm
Working radius	1400mm	1589mm	1595mm	1950mm	2483mm
Weight	180KG	180KG	290KG	600KG	1300KG
Motion Range(°) J1	±170	±170	±170	±180	±180
J2	±120~-85	±120~-80	±132~-95	±130~-90	±80~-60
J3	±85~-165	±85~-165	±73~-163	±75~-210	±80~-190
J4	±180	±180	±180	±360	±360
J5	±135	±135	±133	±115	±115
J6	±360	±360	194	365	215
Max Speed(°/s) J1	130	130	147	158	100
J2	130	130	100	149	90
J3	130	130	135	130	104
J4	270	270	300	215	144
J5	170	170	198	251	160
J6	455	455	194	365	215
Power	4KVA	4KVA	6KVA	14KVA	31KVA
Voltage	380V or 220V
Frequency	50Hz or 60Hz

Applications and Benefits

The Six-station positioner layout enables long time continuous welding, significantly improving welding efficiency and quality
The positioner allows workpiece clamping at one time and automatically performs alternating welding of the four corners, effectively controlling deformation
This machine achieves automatic welding with manual loading, improving welding quality and efficiency while reducing production costs
Robots replace manual welding, eliminating exposure to high temperature, arc light, and welding smoke that impact worker health
Using robots for welding is an inevitable trend driven by market promotion and technological upgrading requirements

Welding Solutions

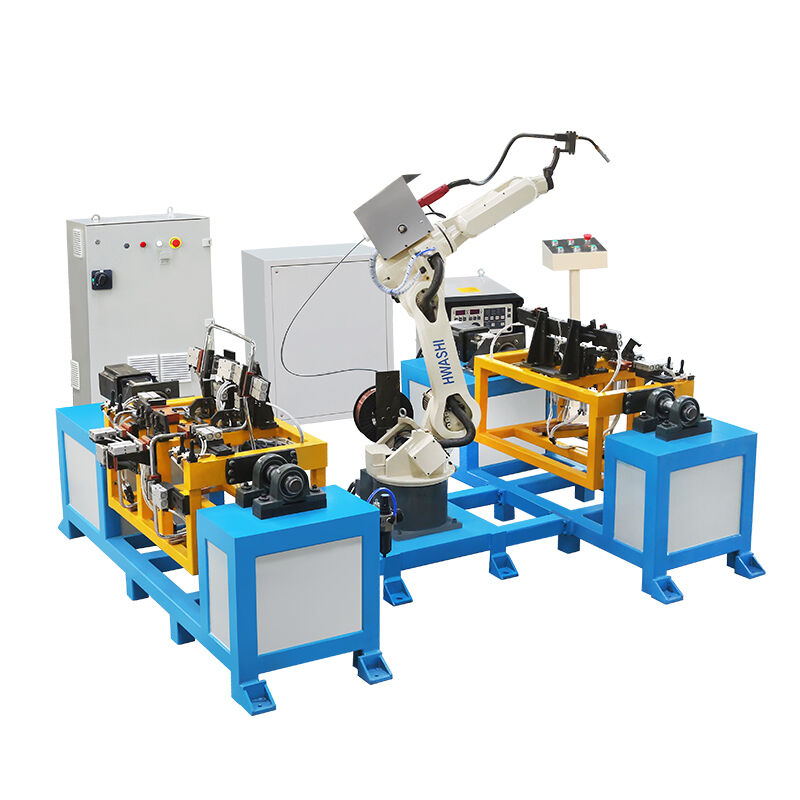

Complete welding robot system includes HS-R6-08 1.4m arm length robot, 350A MIG welding machine, automatic anti-collision welding gun, two one-axis vertical rotation positioners, welding gun cleaner, and welding fixtures
Welding gun cleaner device is recommended to guarantee stability and consistency of welding quality
Automatic welding is performed by six-axis robot MIG welder using cylinders or fast clamps with lever principle to ensure positioning requirements
Two positioners are designed for alternating loading/unloading and welding operations based on production efficiency requirements

Working Process

Manual loading of workpiece to fixture in Station 1 fixed table
Start welding process
Robot and welding machine perform welding according to preset program
Welding completion
While Station 1 is being welded, Station 2 simultaneously loads and fixes workpiece - two stations work alternately
Continuous cycle operation
