Name: Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 25,000.00 USD
Availability: InStock

Hogar > Productos > Soldadora de la descarga del condensador >

Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles

Medium frequency spot welder with dual heads

Automatic spot welder for barrel hoops

MFDC inverter spot welding machine

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

Número de modelo:

WL-SQ-MF160Kx2

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Línea de producción de condensadores de tubos de alambre de refrigerador Máquina de soldadura Máquin

Dimensión (largo* ancho* alto):

5000x2400x2200m m

Peso:

2500 kg

Ancho efectivo de soldadura:

600-1000m m (modificado para requisitos particulares)

Garantía:

1 año

Transformador:

Transformador de la frecuencia intermedia DC

Pago y términos de envío

Cantidad de orden mínima

1 juego

Precio

Negociable

Detalles de empaquetado

Paquete de madera digno del mar de película del PVC para FCL

Tiempo de entrega

30 - 60 días laborables recibieron después su pago

Condiciones de pago

LC, T/T

Capacidad de la fuente

50 juegos por mes

Productos relacionados

Vídeo

MFDC Double-Head Spot Welding Machine with Dual-Point Welding and MFDC Transformer for Barrel Hoop Lock Clips (600-1000mm Welding Width)

Consiga el mejor precio

Vídeo

Máquina de soldadura por puntos AC Hwashi Wl-Sp-1ook, soldadores por puntos eléctricos de alto rendimiento

Consiga el mejor precio

Vídeo

Máquina de soldadura de descarga de condensador de 15 KVA para la manija de la olla de la nave SS

Consiga el mejor precio

Vídeo

Máquina de soldadura con descarga de condensador Hwashi de 15 KVA para la manija de la olla de la SS Cookware

Consiga el mejor precio

Éntrenos en contacto con

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contacto ahora

Descripción de producto

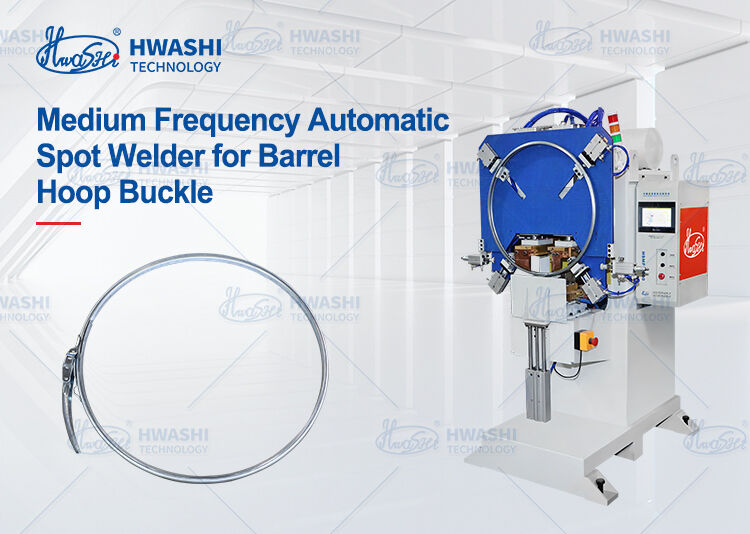

Medium Frequency Automatic Spot Welder for Barrel Hoop Buckle

On every steel drum, the hoop buckle is the most critical component—it's the mechanical latch that tightens and locks the barrel hoop in place, bearing the full clamping force during sealing, opening, and transportation. A failed buckle weld results in loose hoops, broken seals, and leaked contents. For industries handling chemicals, petroleum, or food products, this represents not just a quality issue but a safety and compliance failure.

Hwashi's Medium Frequency Automatic Spot Welder for Barrel Hoop Buckles is engineered to prevent such failures. This machine automates the entire buckle welding process: operators load the hoop and buckle, and the machine positions, clamps, and welds both attachment points with precise MFDC energy before releasing the finished part. Every weld is identical—consistent nugget size, penetration depth, and pull strength—ensuring reliability shift after shift, drum after drum.

What distinguishes this machine is the integration of medium-frequency inverter DC technology with a welding process specifically optimized for barrel hoop buckles. The MFDC power supply handles galvanized steel hoops without spatter or coating damage. The fixture system accommodates the curved geometry of barrel hoops, and dual welding heads deliver symmetrical, simultaneous welds unmatched by single-head machines.

Key Differentiating Features

Automatic Welding Cycle

Eliminates operator skill dependency with fully automated clamping, electrode approach, welding current profile, hold time, and retraction. Ensures consistent weld quality regardless of operator experience.

MFDC Inverter Technology

Operates at 1000Hz for rapid, concentrated energy pulses that form solid weld nuggets before zinc coating vaporizes. Results in clean welds with minimal spatter, intact zinc coating, 30%+ energy savings, and power factor ≥0.90.

Dual Welding Heads

Simultaneous, synchronized welding of both attachment points ensures symmetrical weld quality under identical conditions. Eliminates thermal and mechanical variations found in single-head processes.

Curved-Surface Fixturing

Engineered specifically for barrel hoop curvature with shaped contact blocks and custom electrodes. Ensures full, even contact at welding positions without shimming or compromise.

Operational Flexibility

Accommodates multiple drum sizes through quick-change fixture components and programmable welding parameters. Store and recall up to 101 welding programs—switch between 55-gallon drum hoops and 20-liter pail hoops in minutes without recalibration or test welds.
