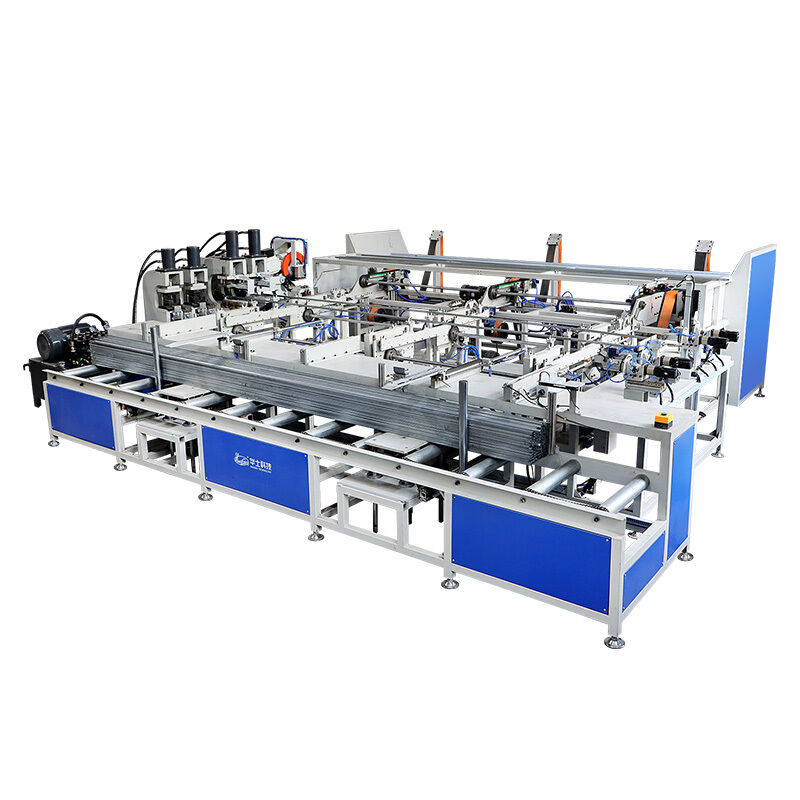

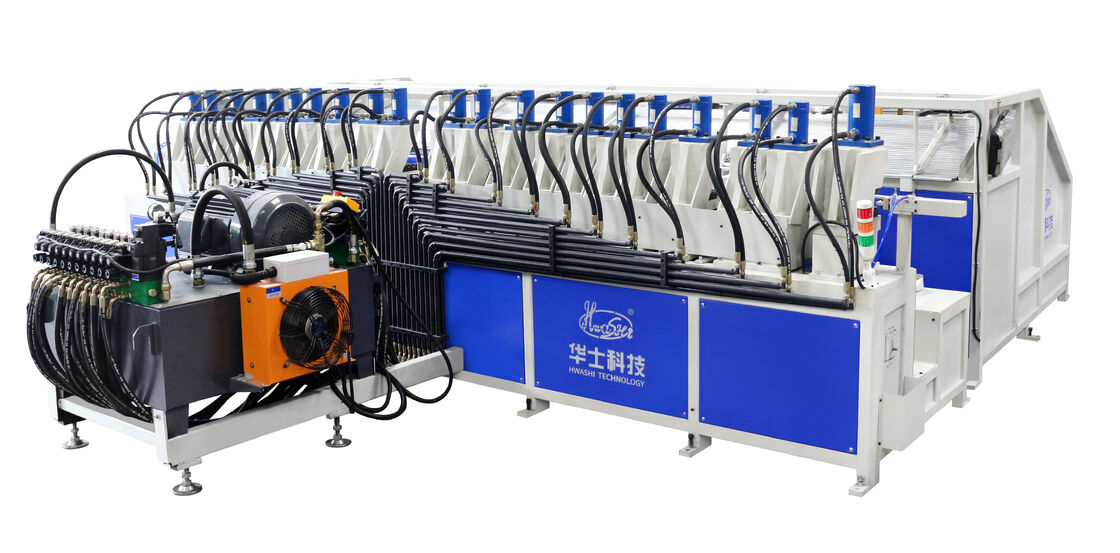

Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Hogar > Productos > Máquina de soldadura IBC >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

Número de modelo:

WL-SQ-150K*2

Éntrenos en contacto con

Pida una cita

Detalles del producto

Nombre del producto:

Máquina automática de prensado y formación de tubos largos de Hwahsi para la línea de producción de

sistema de control:

SOCIEDAD ANÓNIMA

Embalaje:

embalaje de madera

Especificación:

CCC

Garantía:

1 año

Fuente de energía de soldadura:

AC / MF DC

Pago y términos de envío

Cantidad de orden mínima

1 juego

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar o película de PVC para FCL

Tiempo de entrega

30 - 45 días hábiles después de recibir su pago

Condiciones de pago

LC, T/T

Capacidad de la fuente

50 juegos por mes

Productos relacionados

Vídeo

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Consiga el mejor precio

Vídeo

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Consiga el mejor precio

Vídeo

Línea de producción de marcos de jaula de red IBC totalmente automática con pruebas de fugas y eficiencia de soldadura de 50 sec/pc

Consiga el mejor precio

Vídeo

Máquina de producción automática de jaula IBC con tiempo de ciclo de 60 segundos por jaula certificada ISO9001 y peso de 2000 kg

Consiga el mejor precio

Éntrenos en contacto con

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contacto ahora

Descripción de producto

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
