Name: Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx6
Price: 375,005.00 USD
Availability: InStock

Hogar > Productos > Soldadora automática de la jaula >

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Lugar de origen:

Porcelana

Nombre de la marca:

HWASHI

Certificación:

CE/CCC/ISO

Número de modelo:

WL-SQ-MF160Kx6

Éntrenos en contacto con

Pida una cita

Detalles del producto

Certificación:

ISO9001

Tipo:

Recipiente de tanque

Peso:

2000 kg

Tamaño del tubo de agua:

G1 1/4

Garantía:

12 meses

Especificación:

CE/CCC

Código HS:

Embalaje de exportación estándar

Pago y términos de envío

Cantidad de orden mínima

1 set

Precio

Negociable

Detalles de empaquetado

Paquete de madera digna de mar

Tiempo de entrega

60 días hábiles después de recibir su pago

Condiciones de pago

L/C, T/T

Capacidad de la fuente

50 conjuntos por mes

Productos relacionados

Vídeo

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Consiga el mejor precio

Vídeo

Revolucione su fabricación de estantes de plancha con nuestra máquina de última generación

Consiga el mejor precio

Vídeo

Máquina de soldadura automática de jaula de alta velocidad con técnica de soldadura bilateral de estilo piano

Consiga el mejor precio

Vídeo

Producción de IBC Grids Hwashi Máquina automática de soldadura de jaulas de alta velocidad con técnica de soldadura avanzada

Consiga el mejor precio

Éntrenos en contacto con

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contacto ahora

Descripción de producto

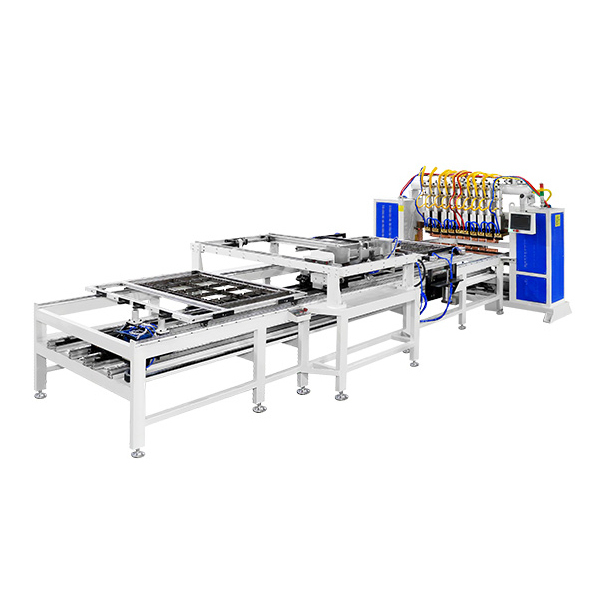

Revolutionize Your Wire Mesh Deck Production with Hwashi Automatic Cage Welding Machine

Transform your wire mesh deck shelving production with the Hwashi Automatic Cage Welding Machine – the ultimate solution for manufacturers seeking to enhance efficiency, precision, and scalability.Engineered for high-performance industrial use, this state-of-the-art welding machine automates the cage welding process for wire mesh decks, eliminating manual errors and reducing production time significantly. Whether you’re producing standard or custom-sized wire mesh shelving for warehouses, storage facilities, or retail spaces, Hwashi’s technology ensures consistent, high-quality welds across every unit.

Working Process

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires.
2)Cross wire and line wire filling system will feed the wire to the welding position automatically.
3)The welding machine will do welding automatically.
4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges.
5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station.
6)The bending machine will bend one side of the mesh.
7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh.
8)The wire mesh will move to the stiffeners (support bars) welding position 9)The mechanical arm will load the stiffeners and fix them automatically to the welding position. 10)The welding machine will do welding of the stiffeners as per drawings. 11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

Key Advantages:

Unmatched Efficiency: Increase production output by up to 300% compared to manual welding, with continuous operation capabilities that minimize downtime.
Precision Welding: Advanced CNC controls deliver uniform welds at every joint, ensuring structural integrity and compliance with industry standards.
User-Friendly Design: Intuitive interface allows operators to set parameters (size, wire gauge, welding density) with ease, reducing training time.
Durable Construction: Built with heavy-duty materials to withstand rigorous factory environments, ensuring long-term reliability and low maintenance.
Customization Flexibility: Adapt seamlessly to various wire mesh deck specifications, supporting diverse client needs and market demands.

Items	Data
Electricity	Three-phase four wires 380V±10%
Power cable	120mm²,400A
Control method	PLC
Effective welding width	1200mm
Effective welding length	1200mm
Automatic moving speed	200-500mm/s adjustable
Automatic wire filling range	Line wire: 400-1200mm,wire diameter: 2-6mm Cross wire: 400-1200mm,wire diameter: 2-6mm
Automatic wire filling system number	2 sets
Machine dimension	35000mmx8000mm
Air pressure	0.6MPa
Cooling water	15-25ºC
